American Cylinder Head Fixture Inclined DI 42.000465

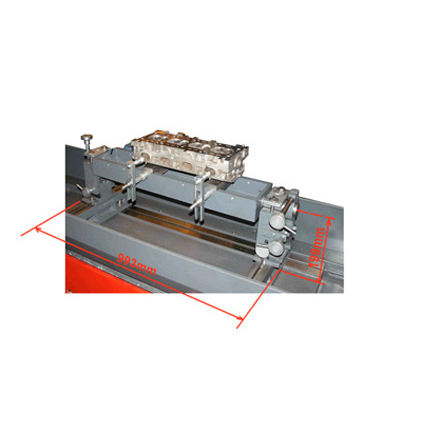

The inclined cylinder head fixture device is used to securely hold cylinder heads with inclined bases and V-blocks during the grinding process. The DI 42.000465 model from Chinelatto is a universal system that ensures precision and stability in fixation, allowing work with different types of engine cylinder heads. It's essential for shops that do professional grinding, as it keeps the part perfectly positioned throughout the entire process.

The American device DI 42.000465 from Chinelatto is a universal fixture system designed for cylinder heads and V-blocks. It has robust construction that ensures precision during grinding. Technical specifications are subject to changes according to manufacturer updates. It's versatile equipment that adapts to different cylinder head geometries, being ideal for shops that work with various types of engines and need a reliable fixture system.

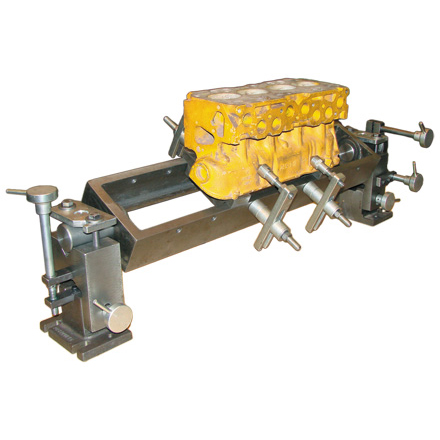

The Chinelatto universal fixture model 42.000465 accepts cylinder heads with inclined bases and V-format blocks. Being a universal device, it works with different geometries and sizes of various engine cylinder heads. It's compatible with domestic and imported car cylinder heads, provided they have inclined base configuration or V-block. The system's versatility allows a single tool to serve multiple applications in the grinding shop.

The universal fixture device like the DI 42.000465 works with various types of cylinder heads and V-blocks, offering versatility for shops that service diverse engines. Specific fixtures are designed for a particular model or format of cylinder head. The universal is more economical as it replaces several specific fixtures, but may require more setup time. The specific is faster in positioning, but limits the variety of jobs on the grinding machine.

The robust system of model 42.000465 works through fixture elements that firmly hold the cylinder head or V-block in the correct position for grinding. The American device has mechanisms that adapt to the inclined geometry of the part, distributing fixture force uniformly. This prevents deformation during the process and ensures dimensional precision. The system keeps the part stable even with vibrations and cutting forces from professional grinding.

The Chinelatto grinding equipment model 42.000465 needs regular preventive maintenance to maintain precision and durability. This includes cleaning after use to remove chips and debris, periodic verification of fixture elements for wear, and lubrication of moving components according to manufacturer recommendation. It's important to check bolt tightness and integrity of contact surfaces. Proper maintenance ensures extended service life and reliable operation in the shop.

The 42.000465. is quoted on demand, and pricing varies with each customer's needs, including accessories, tooling and optional features. With in-house technology developed by Chinelatto in Brazil since 1962, you can count on responsive support from our technical team. Spare parts: many are kept in stock and the others are manufactured within a reasonable lead time. Request a quote at chinelatto.com.br/contact — our sales team will contact you very soon.
