CRANKSHAFT GRINDER MACHINE - MOD. RVC-1500M
MODEL: RVC-1500M
Catalogue
 (1.2 MB)


CRANKSHAFT GRINDER MACHINE - MOD. RVC-1500M


Click on image to view enlarged



Technical Specifications
CAPACITY
Distance between chucks 59.1/20”
Distance table-headstock center 10.5/8”
Max. Swing over table 21.1/4”
Max. offset of centers 3.5/32” x 3/16”
Rest capacity 1" ~ 3.5/32" - 3.5/32" ~ 4.15/16"

WORKHEAD SPINDLE
Rotations - hertz variable frequency 20 ~ 100 rpm’s

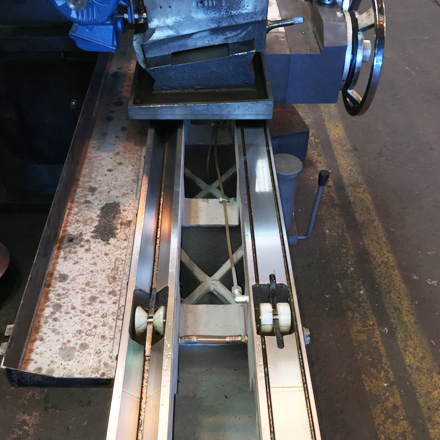

Table - slow advancement for spin of the steering wheel 1.1/4” /turn

WHEEL HEAD
Grinding wheel speeds 1.150 rpm
Diameter – min.~ max. width grinding wheel Ø 28” x 3/4” ~ 1.1/2” x Ø 8"
Hand micrometric wheel head feed hand 1/4”/turn

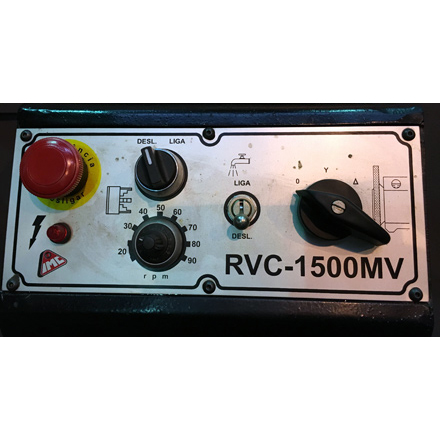

MOTORS
Workhead spindle 0.75 kw
Wheel head 3.73 kw
Cooling pump 0.09 kw

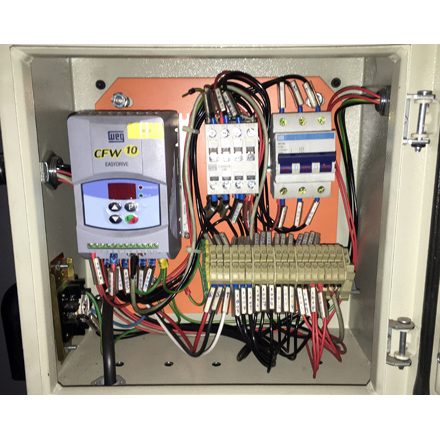

ELECTRIC POWER
Normal electric power 220 volts – 60hz – 3 fases
Motor power 4.57 kw

DIMENSIONS-WEIGHT
Machine Dimensions (Length x Width x Height) 149" x 78" x 74"
Running Machine Dimensions (Lenght x Width x Height) 204" x 78" x 74"
Maritime packing (Length x Width x Height) 126" x 82" x 74"
Net Gross Approx. weight 7.275 lb / 8.378 lb

STANDARD ACCESSORIES
- 01 Grinding wheel Ø 711.20 mm x 19.05 mm x Ø 203.2 mm (28" x 3/4" x 6")
- 01 Grinding wheel flange
- 01 Coolant pump with tank

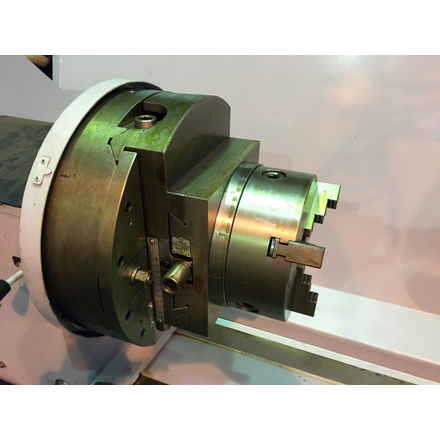

- 02 Universal chuncks Ø 8" with 3 jaws
- 01 Wheel periphery and side truing attachment (without diamond)
- 01 Truing fixture with dial gauge for cheching concentricity
- 01 "V” square
- 01 Equipment for continuous gauging with dial indicator - mm

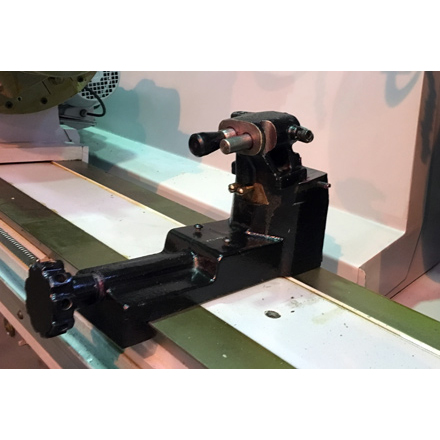

- 02 Steady rest
- 01 Grinding wheel stripper
- 02 Centering points
- 01 Set of service spanners

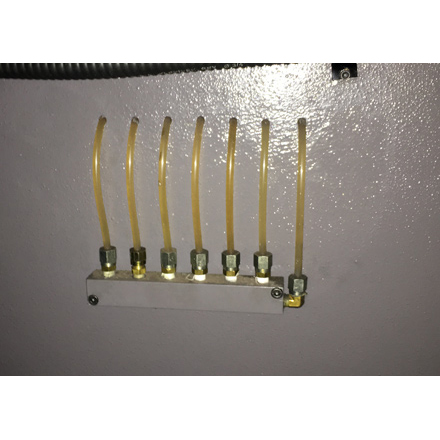

- 01 Grease gun

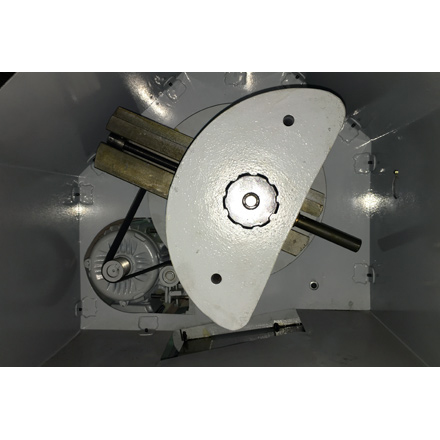

- 01 Pair of additional counter weights
- 01 Set of splash guards

OPTIONAL ACCESSORIES
- Grinding wheel - width 3/4" - 1” - 1.1/4” - 1.1/2”
- 01 Grinding wheel balancer with 01 axle
- Flanges
- Diamond
- Steady rest
- 01 Rapid centering support
- 01 Equipment for continuous gauging with dial indicator - mm
- 01 Pieces set to support the machine without vibration

Technicals specifications subjected to change.
