HYDRAULIC CRANKSHAFT GRINDER MACHINE

HYDRAULIC CRANKSHAFT GRINDER MACHINE - MOD. RVC-1000HVP

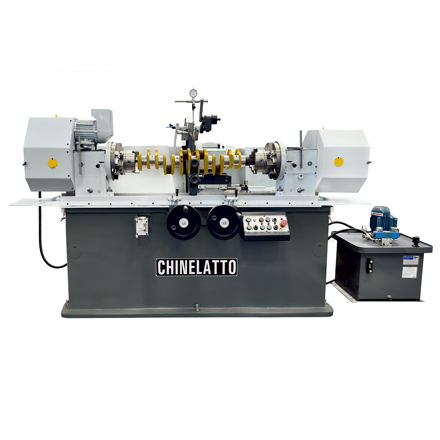

MODEL: RVC-1000HVP

HYDRAULIC CRANKSHAFT GRINDER MACHINE - MOD. RVC-1000HVP

Click on image to view enlarged

Description:

Tags:

STRUCTURAL FORM

. All structure built in ribbed cast iron.

. Grinding wheel head with automatic hydraulic advance.

. Table with automatic advance by gear motor.

. Crossed fast centering plates.

. P4 precision bearings in the working head spindles.

. Continuous measuring device of fast operation.

Technical Features

CAPACITY
.Distance between chucks	39.370"
.Max. swing over table	Ø17.323"
.Max. wheel cross movement	2.953" x 0.197"

WORK HEAD SPINDLE
.Center height	8.661"
.Work spindle speed - rpm	20~80 rpm
.Table automatic advancement	127.953 in/min
.Chucks diameter	Ø6.299"

GRINDING WHEEL
.Wheel size	Ø24"
.Max. grinding wheel thickness	1.496"
.Min. grinding wheel thickness	0.669"
.Inner grinding wheel diameter	Ø8"
.Grinding wheel rotation speed	1.410 rpm
.Grinding head speed	147.638 in/min

.Total motor power	3.5 kw
.Electrical tension	220v - 60hz. - 3ph.

.Net weight	3.285 lb
.Gross weight	4.166 lb
.Maritime packing	87" x 65" x 71"
.Working area	122" x 65" x 65"

STANDARDS ACCESSORIES

- Crossed fast centering plates

- Hydraulic

- Lubrication pump

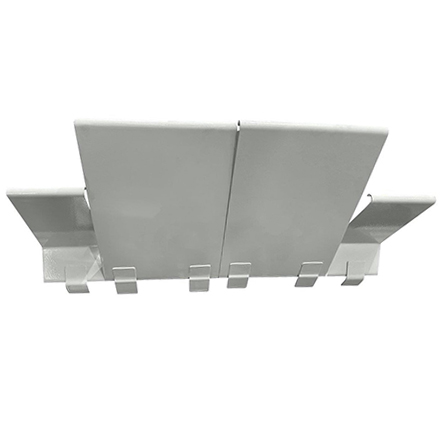

- Accordion protection wheel head

- Grinding head counter weight

- Electrical panel

- 02 chucks Ø6" with jaws and keys

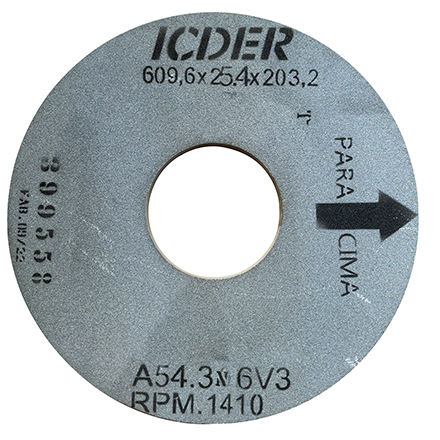

- Grinding wheel Ø24" x 3/4" with 01 flange

- Continuous journal sizing gauge

- Crankshaft centering fixture with dial indicato

- Crankshaft journal checking square

- Wheel face, side and radius dresser without diamond

- 02 Steady rest

- 02 Center Points

- Coolant pump with tank

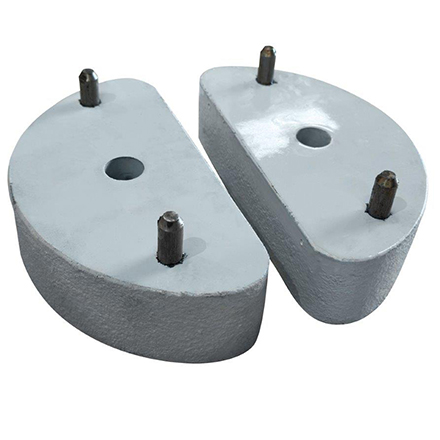

- Addition counter weight

- 04 Anti-vibrators

- Splash protection

- Grinding wheel extraction key

EXTRA ACCESSORIES

- Grinding Wheel - Ø610 mm (24”) - espesor: 0.669" - 0.748" - 1.00" - 1.259" - 1.50"

- Flanges of grinding wheel

- Device for balancing grinding wheel

- Filter paper

- Diamond

Technical specifications subject to change.
