HYDRAULIC CRANKSHAFT GRINDER MACHINE

HYDRAULIC CRANKSHAFT GRINDER MACHINE - MOD. RVC-1800HVP

MODEL: RVC-1800HVP

HYDRAULIC CRANKSHAFT GRINDER MACHINE - MOD. RVC-1800HVP

Click on image to view enlarged

Description:

Tags:

STRUCTURAL FORM

. All structure built in ribbed cast iron.

. Grinding wheel head with automatic hydraulic advance.

. Table with automatic advance by gear motor.

. Crossed fast centering plates.

. P4 precision bearings in the working head spindles.

. Continuous measuring device of fast operation.

Technical Features

CAPACITY
.Distance between chucks	70.866"
.Max. swing over table	Ã˜21.259"
.Max. wheel cross movement	3.149" x 0.196"

WORK HEAD SPINDLE
.Center height	10.629"
.Work spindle speed - rpm	20~100 rpm
.Table automatic advancement	118.110 in/min
.Chucks diameter	Ã˜7.874"
.Steady rest - range	Ã˜1" ~ Ã˜4.921"

GRINDING WHEEL
.Wheel size	Ã˜28"
.Max. grinding wheel thickness	1.692"
.Min. grinding wheel thickness	0.669"
.Inner grinding wheel diameter	Ã˜8"
.Grinding wheel rotation speed	1.150 rpm
.Grinding head speed	78.740 in/min

.Total motor power	5.68 kw
.Electrical tension	220v - 60hz. - 3ph.

.Net weight	8.708 lb
.Gross weight	10.582 lb
.Maritime packing	153" x 87" x 83"
.Working area	232" x 98"

STANDARDS ACCESSORIES

- Crossed fast centering plates

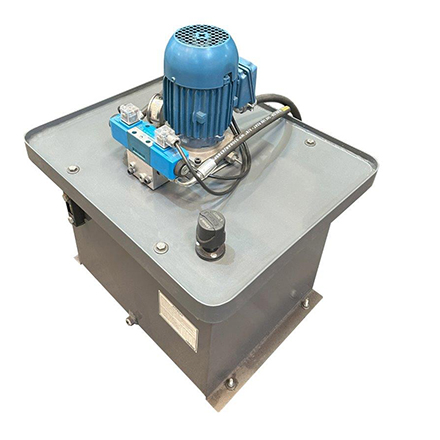

- Hydraulic

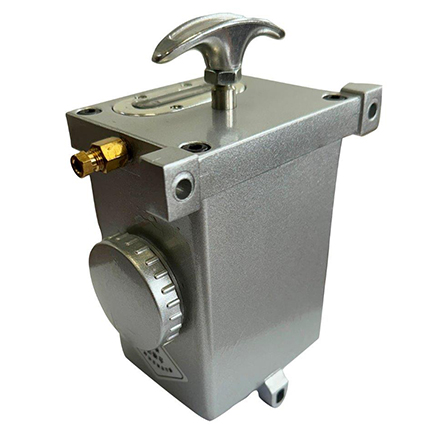

- Lubrication pump

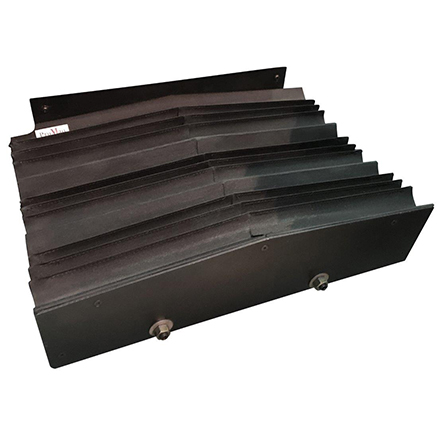

- Accordion protection wheel head

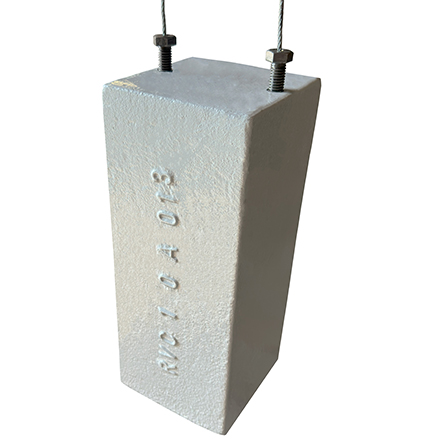

- Grinding head counter weight

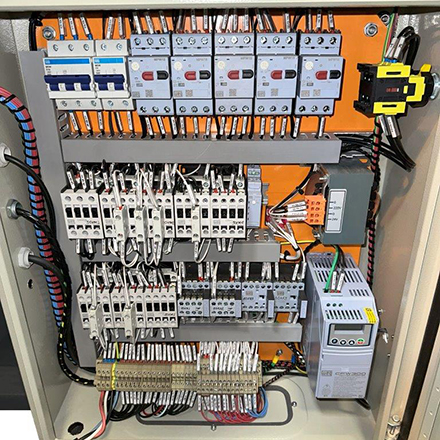

- Electrical panel

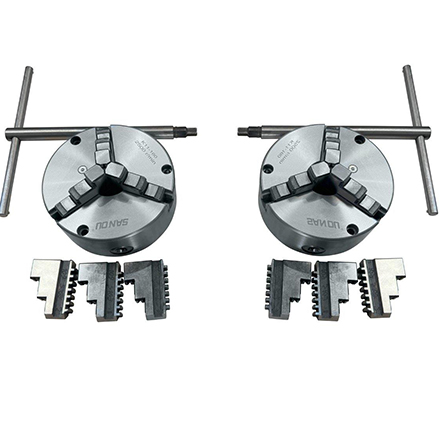

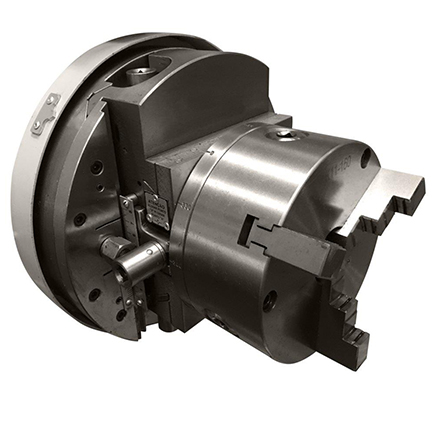

- 02 chucks Ø8" with jaws and keys

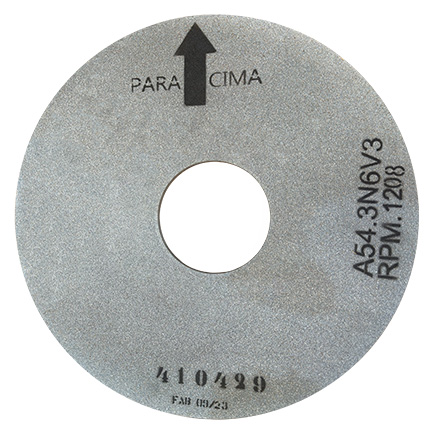

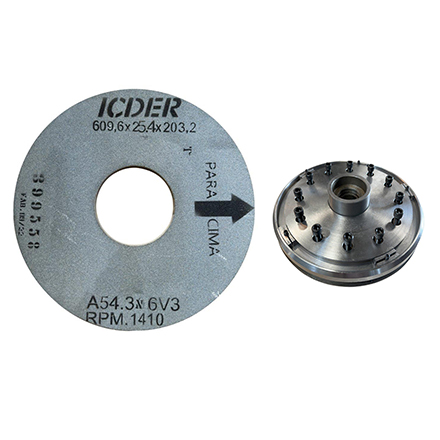

- Grinding wheel Ø28" x 3/4" with 01 flange

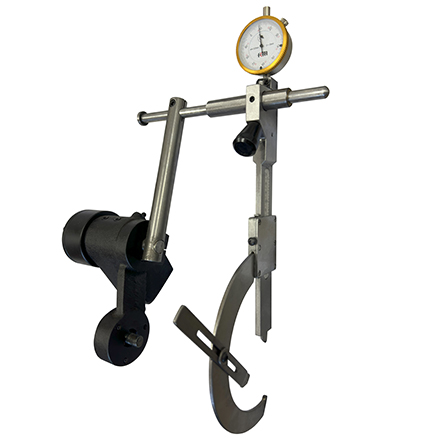

- Continuous journal sizing gauge

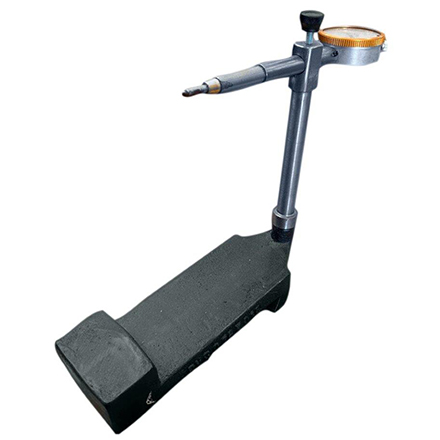

- Crankshaft centering fixture with dial indicato

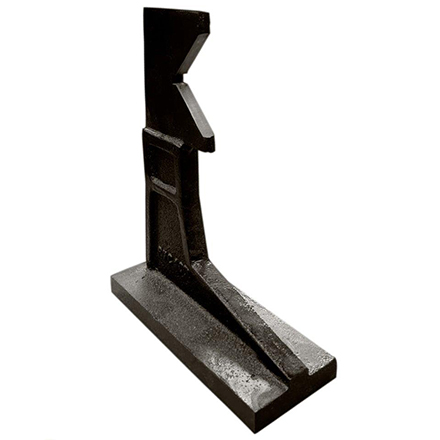

- Crankshaft journal checking square

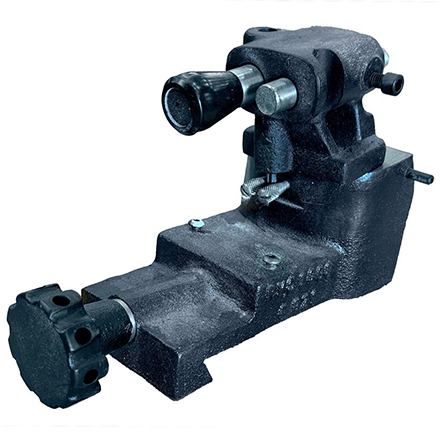

- Wheel face, side and radius dresser without diamond

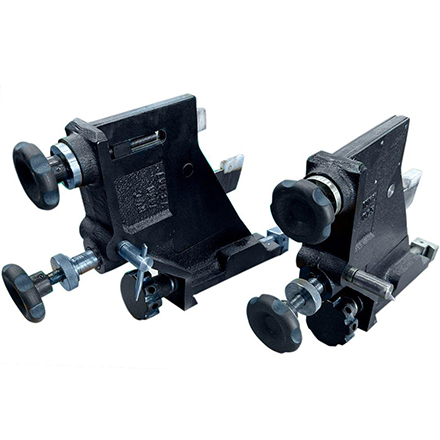

- 02 Steady rest

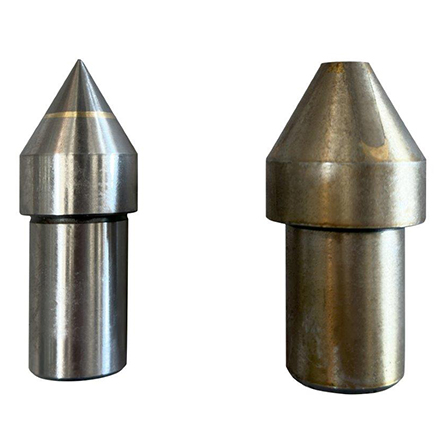

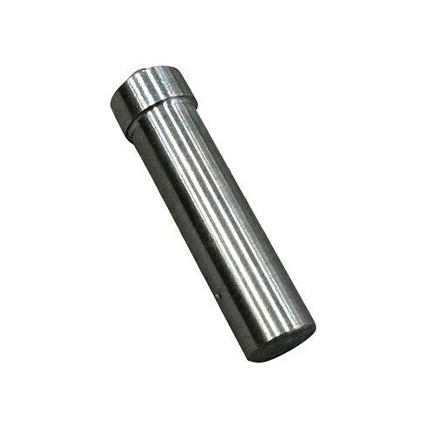

- 02 Center Points

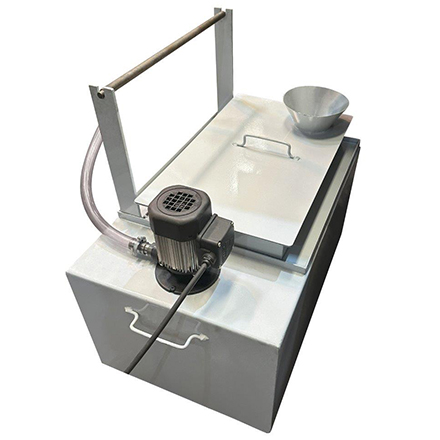

- Coolant pump with tank

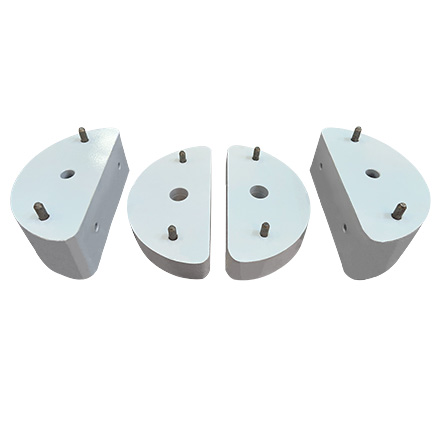

- Addition counter weight

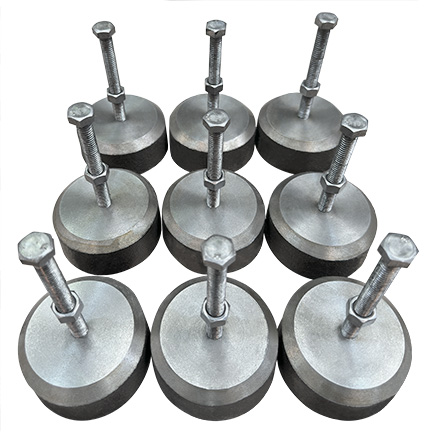

- 09 Anti-vibrators

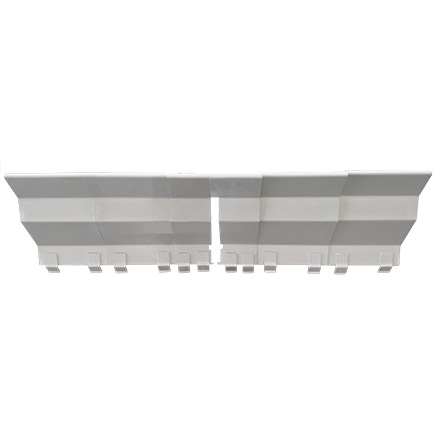

- Splash protection

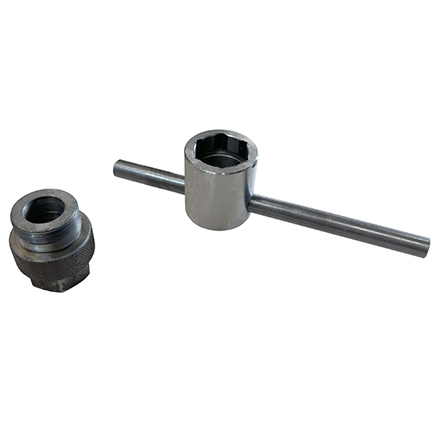

- Grinding wheel extraction key

EXTRA ACCESSORIES

- Grinding Wheel - Ø711mm (28”) - espesor: 0.669" - 0.748" - 1.00" - 1.259" - 1.50" - 1.69"

- Flanges of grinding wheel

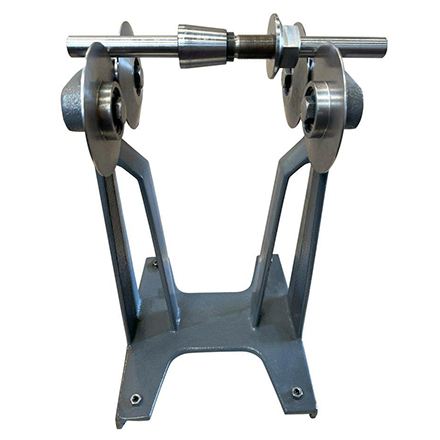

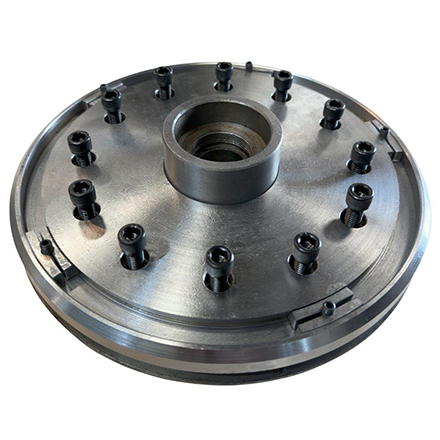

- Device for balancing grinding wheel

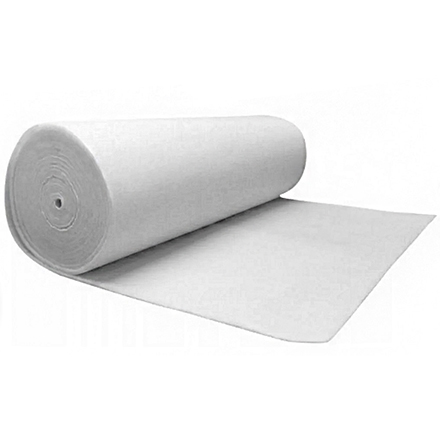

- Filter paper

- Diamond

Technical specifications subject to change.
